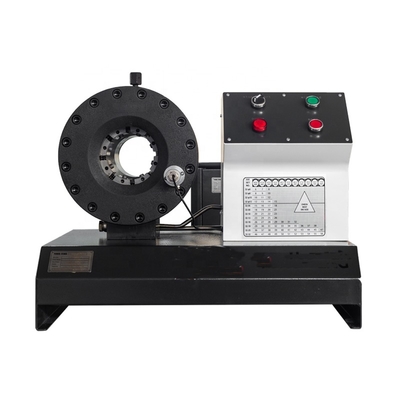

Factory Hot Sale Energy Saving 8 Sets Free Dies 12v Hydraulic Hose Crimping Machine

1 Set
MOQ
$2,500.00(1 - 1 Sets) $2,400.00(>=2 Sets)
Price
Factory Hot Sale Energy Saving 8 Sets Free Dies 12v Hydraulic Hose Crimping Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty Of Core Components: 3 Years
Core Components: Machine Head
Machine Type: Hose Crimping Machine
Voltage: 12V
Dimension(L*W*H): 450*300*550mm
Weight: 165kg
Warranty: 3 Years
Key Selling Points: Easy To Operate
Showroom Location: None
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining
Crimping Range: 6mm To 56mm
Drive: 2.2kw
Hose Size: 1 1/4" 4SN
Passing Diameter: 90mm
Crimp Head Material: FORGE STEEL
Dies: 8 Sets
Opening Diameter: 96mm
Control: Full Automatic
Crimping Force: 2600kN
Power(W): 2.2KW
After-sales Service Provided: Free Spare Parts, Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: Firstly, use plastic film. Secondly , we will pack Hot sell energy-saving 8 sets free dies 12v hydraulic hose crimping machine by wooden case . In addition, we can pack the machine as per customers' requirements.
Supply Ability: 300 Set/Sets per Month Hot sell energy-saving 8 sets free dies 12v hydraulic hose crimp
Product Description
Product Description

Hot sell energy-saving 8 sets free dies 12v hydraulic hose crimping machine

Hot sell energy-saving 8 sets free dies 12v hydraulic hose crimping machine is a portable type of machine which is simply designed and convenient for operating and carrying. It is designed to be powered by 12V/24V battery, which is more suitable for the outdoor work and production without electric power. CYT-F20V crimper is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering. The crimping range can be precise adjusted through a micrometer. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

Specification of Hot sell energy-saving 8 sets free dies 12v hydraulic hose crimping machine

Crimp head material
FORGE STEEL
Crimp range
6-56mm
Hose size
1¼", 4SN
Passing diameter
90mm
Opening diameter
96mm
Opening
+21mm
System pressure
31.5Mpa
Crimp force
2600kN
Drive
2.2kw
Standard voltage
12v/24v
Control
Full automatic
Standard dies
8 sets
Weight
165kg
L x W x H
450*300*550mm

Specification of dies

No.
Ø6
Ø8
Ø10
Ø13
Ø16
Ø19
Ø25
Ø32
Crimping Range
15-25mm
18-28mm
20-30mm
23-33mm
26-36mm
29-39mm
37-47mm
46-56mm
Length
65mm
65mm
65mm
65mm
65mm
65mm
70mm
70mm

Application of Hot sell energy-saving 8 sets free dies 12v hydraulic hose crimping machine

The machine is widely used in engineering machinery ,oil fields, steel mills ,ship manufacturing, agricultural machinery ,coal and other industries.

Detailed Images

Machine Parts

Name: Machine Head

Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.


Machine Parts

Name: Die connection

Our crimping dies are connected through magnetism, which makes it convenient for assembly and disassembly, and the crimping is neat.

Machine Parts

Name: Power System

Best selling 12v mobile hydraulic hose crimping machine is equiped with the DC power supply system which is very popular in the industry of mobile service. This kind of power system can provide stable power supply for the machine, and makes the crimper more convenient for outdoor work.


Material

The oil cylinder cover, oil tank and piston rod are made from 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The harden layer is 2mm thick.

Feature

1.The vehicle mounted crimping machine has great advantages for mobile mechanical maintenance and outdoor hose crimping with no AC power supply.

2.The CYT-F20V  hydraulic hose crimper machine is powered by 12V/24V DC. Average vehicle batteries can meet the power requirements of the crimper. There are few environmental constraints.

3.The crimper is small in size and easy to move.

4.Compared with the hand operated model, the vehicle mounted crimper saves manpower with greater stable crimping force.

Our Company

Henan Chengyitong Machinery Equipement Co., Ltd specializes in Hot sell energy-saving 8 sets free dies 12v hydraulic hose crimping machine , hose cutting machine , hose skiving machine and other equipment. We insist Quality Create Value and will provide one-stop service for our customers.

Packing & Delivery
Packaging
Size
450(L) * 300(W) * 550(H) mm
Weight
135kg



Packaging Details
The normal package of 12V 1-1/4inch crimpadora de mangueras hidraulicas is pe film firstly and then pack goods by fumigated wooden box or pack it according to customers' special request.
FAQ

1.Q:Do you have CE certificate?
  A:Yes,the following is our CE certificate.

2.Q:What's the packing of the machine?
 A: we use the fumigation wooden case.

3.Q:What mode of payment do you usually accept?
A:Usually we accept T/T in advance and we also support Alibaba Trade Assurance Order.

4.Q:How long does it usually take you to make delivery?
A:within 7 days after receiving your payment,we will send the machine to our
customer.

5.Q:Is professional oversea engineer service available?
A:Of course.For your mentioned questions,our engineer will help you solve it patiently.

6.Q:Do you offer other products?
A:Yes,we have rubber hose ,PVC hose , hose fittings and so on.
