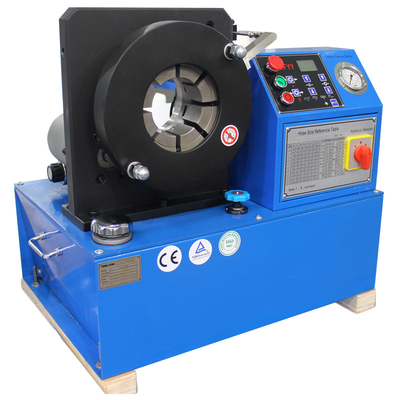

Building material stores YONG-FENG YJK-140A hydraulic pipe crimping machine for vehicle air suspension crimping machine

1.0 Sets
MOQ
$5,400.00(>=1 Sets)
Price
Building material stores YONG-FENG YJK-140A hydraulic pipe crimping machine for vehicle air suspension crimping machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 3 Years
Core Components: PLC, Motor, Pump
Machine Type: Hose Crimping Machine
Voltage: Customized, Customized
Dimension(L*W*H): 700*500*650mm
Weight: 180KG
Warranty: 3 Years
Power (kW): 4KW
Key Selling Points: Easy To Operate
Showroom Location: France, Germany, Peru, India, Russia, Thailand, Kenya, Argentina
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction Works , Energy & Mining, Rubber Product Making Machinery
Model: YONG-FENG YJK-140A Hydraulic Hose Crimping Machine
H.C. Material: Forge Steel
Opening Diameter: 150mm
Crimping Range: 120mm
Control: CNC/Automatic
Crimping Force: 1200kN
Power(W): 4kw
System Pressure: 31.5Mpa
Dies: Customized
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: France, Germany, Peru, India, Russia, Thailand, Kenya, Argentina, Chile
Certification: CE,ISO9001
Basic Infomation
Certification: CE,ISO9001
Model Number: YONG-FENG YJK-140A hydraulic hose crimping machine
Payment & Shipping Terms
Packaging Details: Standard export package, custom suffocating free. Inner PVC bags and outer wooden case.
Supply Ability: 500 Set/Sets per Month hydraulic hose crimping machine
Product Description
Product Description

Main Features

1) YONG-FENG YJK-140A hydraulic hose crimping machine using forge steel machine head, more durabler than general steel.

2) CNC operation panel, simple controls and operation.

3) CNC system, high crimp accuracy which is within 0.01mm.

4) Equipped with a foot pedal, very convenient for free hand operate.

5) Magnetic dies (Patented), very convenient to remove and install dies.

Product Parameter





Main Performance Parameters
Model
YJK-140A hydraulic hose crimping machine
Crimping Range
up to 120mm
Opening Diameter
150mm
Crimping Force
1200kN
Mold Opening Time
1.2s
System Pressure
31.5MPa
Operation Mode
CNC/Automatic
Power Voltage
Customized
Matching Power
4kw


Machine
Specifications
Machine Head
Forge Steel
Dimension (L*W*H)
700×500×650mm
Net Weight
180kg
Die Sets
Customized
Length of Dies
Customized

Product Application

YONG-FENG YJK-140A hydraulic hose crimping machine is used for crimping air suspensions, air brake hoses, air conditionner hoses, fire hoses, steel tubes.

YONG-FENG YJK-140A air suspension crimping machine also can process special-shaped workpiece.

Detailed Images

Machine Head

Attribute: Forge Steel

Original: Germany Technology

Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.

Dies & Mold Base

Attribute: Strong Magnetic Connection

Original: YONGFENG(Patented)
Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000. Dies and die base is connected by cutting-the-edge technology of strong magnetic connection, for which our company holds the patent.

Electromagnetic Valve

Attribute: 39.852N Pushing Force
Original: Germany SED
It is used to adjust the hydraulic oil flow direction, quantity, speed etc. With high precision and good flexibility. The reversing valve spool is original Germany SED. Working with stability, no shaking, no blocking.

Control Panel

Attribute: CNC Operation Panel

Original: China(Mainland)
YONG-FENG YJK-140A hydraulic hose crimping machine has equipped with computer numerical control operation panel which is more humanized than the ordinary ones. Computer numerical control operation system makes crimping more accurate, faster and simpler.

Certifications
Company Strength

Yongfeng hydraulic hose crimping machine, the professional manufacturer of hydraulic hose crimpers, cutter, skiving machine, test bench, hoses & fittings assembly and accessories for over 20 years. Yongfeng crimping machines supply the Portable, On-site mobile, Workshop and Industrial hose crimpers, which have widely used in industries of hydraulic repair service of construction machinery, agricultural machinery, vehicle repair, production of industrial hoses, hydraulic equipments, On-site service, oil fields, mining hydraulic prop, greenhouse, galvanized steel pipes etc.

Yongfeng crimping machines have covered more than 20 domestic provinces and cities in China's markets and exported to more than 80 countries as follows: European market, such as Poland, Bulgaria, Germany, Italy, Denmark, Russia, Malta; American market, such as Uruguay, Mexico, Bolivia, Columbia, Canada; Oceania market, such as Vanuatu, New Zealand, Australia; Asia market, such as Sri Lanka, India, Pakistan, Philippines; Middle East market, such as Kuwait, UAE; African market, such as Algeria, South Africa, and so on.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory & Office.

After-Sales Service

* Warranty for 3 years.

* Training how to instal and use the machine.

* Provide free quick-wear part.

Payment Term

Trade Assurance

* PAY to our company's CITIBANK account designated by Alibaba.com with credit card or bank transfer.
* 100% product quality protection; 100% on-time shipment protection; 100% payment protection.

T/T

* 100% T/T in advance(normal models in stock).
* 50% T/T in advance, balance paid before delivery(for the customized models).

Packing & Delivery
Packing
Size
750(L) * 550 (W) * 700 (H)
Weight
200kg



Packaging Details

The normal package for our hydraulic hose crimping machine is Wooden Plywood Crate. The outside package is standard export wooden case, and the inner package is stretch film or packaged according to customers special request.

Delivery

* The normal models of hydraulic hose crimping machine are in stock, they can be delivered once the payment is finished. As for the customized ones, we promise that they can be deliverd within a week after we received the payment.

* Transportation, the first choice is shipping, air or land is also avaliable if customers have special request.

FAQ

1.Q: What's the difference of your machine with others?

A: FORGE Steel machine head, 3 times stronger than general machine.

CNC operation system, high crimp accuracy which is within 0.01mm.

2.Q: Are you the manufacturer or trading company?

A: We are the manufacturer for hose crimping machine over 20 years, since 1992.

3.Q: What about the price?

A: Competitive price, the advanced technology and high quality you ever have.

4.Q: Why we choose YONG-FENG?

A: CE & ISO certifications, Alibaba Assessed Supplier and every machine warranted for 3 years.

5.Q: What is the MOQ?

A: We would like to provide 1 set for you test.

6.Q: If I can not find the machine which I need,what should I do?

A: Pls contact me on line or inquiry, write down your request and email, I will reply you as soon as possible.
