Features

Specifications

Condition: New

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty Of Core Components: 3 Years

Core Components: PLC, Crimping Machine Parts

Machine Type: Hose Crimping Machine

Voltage: 110-480v

Dimension(L*W*H): 600*480*690mm

Weight: 230kg, 230kg

Warranty: 3 Years

Power (kW): 4kw

Key Selling Points: Easy To Operate

Showroom Location: United Kingdom, United States, Italy, France, Peru, Saudi Arabia, Mexico, Russia, Chile, UAE, Colombia, Uzbekistan, Australia

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction WorksÂ , Energy & Mining, Crimping Hydraulic Hose

Machine Head: Forge Steel

Feature: High Crimp Accuracy

Crimping Range: Up To 2" 4sp

Opening Without Dies: 118mm

Crimping Force: 200T

Operation Mode: Digital Control

Power Voltage: 110-480v

Application: Hose Crimping

Dimension: 600*480*690mm

After-sales Service Provided: Online Support, Video Technical Support

After Warranty Service: Video Technical Support, Online Support

Local ServiceÂ Location: United Kingdom, Peru, Russia, Thailand, Malaysia, Argentina, Chile, UAE

Certification: ISO9001, CE

Basic Infomation

Certification: ISO9001, CE

Payment & Shipping Terms

Packaging Details: Standard export plywood case for hose crimping machine

Supply Ability: 500 Set/Sets per Month hose crimping machine

Product Description

Main Features

1) Using forge steel machine head, this kind of steel is more durabler than general steel.

2) Digital operation panel, high crimp accuracy.

3) Humanized design, simple controls and operation.

4) Equipped with a foot pedal, very convenient for free hand operate.

5) Magnetic dies (Patented), very convenient to remove and install dies.

*Product Parameter*
Main Performance Parameters	Model	YJK-120X Crimping Machine
		Crimping Range	up to 2" 4sp
		Opening without dies	118mm
		Crimping Force	200T
		Mold Opening Time	1.2s
		System Pressure	31.5Mpa
		Operation Mode	Digital Control
		Power Voltage	110-480V
		Matching Power	4kw
Machine Specifications	Machine Head	Forge Steel
		Dimension (LWH)	650×500×730mm
		Weight	248kg
		Die Sets	14sets
		Master Die Length	80mm

Product Application

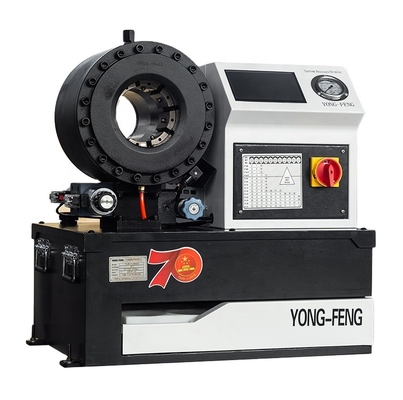

Model YONG-FENG YJK-120X degital control crimping machine has equipped with high-precision CNC operation panel, fast crimp and good quality. This machine features small and portable appearance, big force, low noise and easy to operate. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device. YONG-FENG YJK-120X crimper is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering. It can also be used for crimping steel pipes, especially large pipes and irregular shape pipes.

Detailed Images

Machine Head

Attribute: Forge Steel

Original: Germany Technology

Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.

Dies & Mold Base

Attribute: Strong Magnetic Connection

Original: YONGFENG(Patented)
Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000. Dies and die base is connected by cutting-the-edge technology of strong magnetic connection, for which our company holds the patent.

Electromagnetic Valve

Attribute: 39.852N Pushing Force
Original: Germany SED
It is used to adjust the hydraulic oil flow direction, quantity, speed etc. With high precision and good flexibility. The reversing valve spool is original Germany SED. Working with stability, no shaking, no blocking.

Control Panel

Attribute: Digital Operation Panel

Original: China(Mainland)
YONG-FENG YJK-120X crimping machine has equipped with high-precision CNC operation panel which is more humanized than the ordinary ones. Digital operation panel makes crimping more accurate, faster and simpler.

Certifications

Company Strength

Yong-Feng Crimping Machine, the professional manufacturer of hydraulic hose crimpers, cutter, skiving machine, test bench, hoses & fittings assembly and accessories for over 20 years. Yongfeng Crimpers supply the Portable, On-site mobile, Workshop and Industrial hose crimpers, which have widely used in industries of hydraulic repair service of construction machinery, agricultural machinery, vehicle repair, production of industrial hoses, hydraulic equipments, On-site service, oil fields, mining hydraulic prop, greenhouse, galvanized steel pipes etc.

Yong-Feng Crimping Machines have covered more than 20 domestic provinces and cities in China's markets and exported to more than 100 countries as follows: European market, such as Poland, Bulgaria, Germany, Italy, Denmark, Russia, Malta; American market, such as Uruguay, Mexico, Bolivia, Columbia, Canada; Oceania market, such as Vanuatu, New Zealand, Australia; Asia market, such as Sri Lanka, India, Pakistan, Philippines; Middle East market, such as Kuwait, UAE; African market, such as Algeria, South Africa, and so on.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory & Office.

After-Sales Service

* Warranty for 3 years.

* Training how to instal and use the machine.

* Provide free quick-wear part.

Payment Term

Trade Assurance

* PAY to our company's CITIBANK account designated by Alibaba.com with credit card or bank transfer.
* 100% product quality protection; 100% on-time shipment protection; 100% payment protection.

T/T

* 100% T/T in advance(normal models in stock).
* 50% T/T in advance, balance paid before delivery(for the customized models).

Packing & Delivery

Packing
Size	640(L) * 520 (W) *730 (H)
Weight	240kg
Packaging Details	The normal package for our crimping machine is Wooden Plywood Crate. The outside package is standard export wooden case, and the inner package is stretch film or packaged according to customers special request.

Delivery

* The normal models of crimping machines are in stock, they can be delivered once the payment is finished. As for the customized ones, we promise that they can be deliverd within a week after we received the payment.

* Transportation, the first choice is shipping, air or land is also avaliable if customers have special request.
