Home /Products/Mobile Hydraulic Hose Crimper/Crimping CE 2" Hose Ferrules 6-51mm/(1/4-2") Hydraulic Manual Hose Crimping Machine Crimper

Crimping CE 2" Hose Ferrules 6-51mm/(1/4-2") Hydraulic Manual Hose Crimping Machine Crimper

1.0 Sets
MOQ

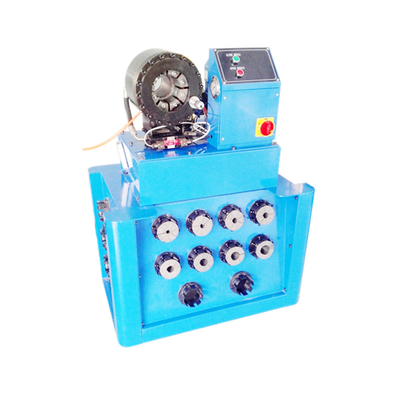

Crimping CE 2" Hose Ferrules 6-51mm/(1/4-2") Hydraulic Manual Hose Crimping Machine Crimper
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Machine Type: Hose Crimping Machine
Voltage: 12V/24V
Dimension(L*W*H): 750(L)*700(W)*700(H)mm
Weight: 71KW
Warranty: 3 Years
Key Selling Points: Easy To Operate
Showroom Location: None
Applicable Industries: Hose Crimping
Name: Hose Crimping Machine
Product Name: High Pressure Hydraulic Hose Crimping Machine
Application: Crimping Hose Fittings
Type: Hydraulic Crimping Tools
Color: Blue/Yellow Or Customer
Crimping Range: 6-51mm
Crimping Force: 300T
Product Type: HR-68M
Maximum Open: 114mm
After Warranty Service: Online Support
Local Service Location: None
Certification: ISO9001
Basic Infomation
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: new strong wooden case.3 ways packing for protecting machine well in delivery.
Supply Ability: 500 Set/Sets per Month
Product Description
Product Description

Product Application

CE 2'' 6-51mm/(1/4-2'') Manual crimping machine/ hydraulic hose crimper

Hose crimping machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hose crimping machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.

SPECIFICATIONS FOR HR68v HOSE CRIMPING MACHINE





Crimping system
Lock(inner) range
mm
6-51mm(can crimp 4SH/4SP)
Amount of dies
sets
10
Mould No
15,19,23,26,31,36,41,47,55,63
Withhold accuracy
mm
0.01
Maximum opening
mm
114
Opening extension
mm
±30
Buckling pressure
T
300

Hydraulic system
Systerm pressure
KPa
20MPA
Oil
#
46
Tank Volume
L
1
SIZE
Dimensions of product
mm
600*680*650
Dimensions of packaging
mm
650*770*750

Weight
Net weight
KG
70
Gross weight
KG
80

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications
Detailed Images
Machine Parts
1. Control valve


2. Pressure gauge


3. Handle


4.Size Chart


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Product
Size
600(L) * 680 (W) *650(D)
Weight
70KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
650(L) * 780 (W) *750 (D)
Weight
180kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

working room
