Home /Products/Mobile Hydraulic Hose Crimper/Building Material Stores Dies Rack 2" 2.5 4" 6" P32 Hydraulic Pipe Crimper Machine Pipe Crimping Machine

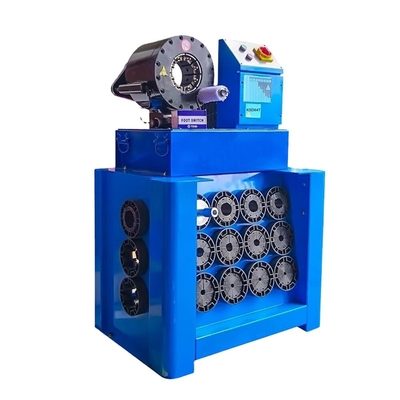

Building Material Stores Dies Rack 2" 2.5 4" 6" P32 Hydraulic Pipe Crimper Machine Pipe Crimping Machine

1 Set
MOQ
$2,599.00(1 - 19 Sets) $2,099.00(20 - 39 Sets) $899.00(>=40 Sets)
Price
Building Material Stores Dies Rack 2" 2.5 4" 6" P32 Hydraulic Pipe Crimper Machine Pipe Crimping Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 3 Years
Core Components: Motor, Pump
Machine Type: Hose Crimping Machine
Voltage: 220-250V, 380V-415V
Dimension(L*W*H): 860(L)*640(W)*1300(H)mm
Weight: 300kg
Warranty: 3 Years, 3years
Power (kW): 3.7KW
Key Selling Points: High-accuracy
Showroom Location: None
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining
Name: Hydraulic Pipe Hose Crimper
Other Name: CE Hydraulic Pipe Hose Crimper
Hose Inner Diamter: 1/8-2.5''
Crimping Force: 600T
Scale Accuracy: 0.01mm
Rated Pressure: 31.5 MPa Hydraulic Pipe Hose Crimper
Free Dies: 13sets
Pump: 4L/5L/10L
Power(W): 3.7KW/380V, 3KW/220V Or Customize
After-sales Service Provided: Free Spare Parts, Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: hydraulic pipe hose crimper package: innermost layer is plastic bag, middle layer is carton, outside layer is wooden box fumigation
Supply Ability: 300 Set/Sets per Month hydraulic pipe hose crimper
Product Description

Dies rack 2" 2.5'' 3'' 4'' 6''  hydrolic hose crimping machine hydraulic P32 pipe crimper





Hose ID 1/8-2.5inch or 6-64mm
Max opening 140mm
Crimping pressure 600T
Power 3.7KW/380V, 3KW/220V or customize
Accuracy 0.01mm
Operate ways Button,foot control,automatic
Wight 300KG
Dies set 13sets
Dies number 14 16 19 22 26 30 34 39 45 51 57 63 69 or Customize
Quick change tool Yes, can install dies one time
Dies rack Yes, easy to operate









Die mould: different pressing product need different dies mould. Like air suspension ring,air conditioner hose,brake hose,hydraulic hose,cable, steel pipe,so you can tell us what you need to crimp, then we make dies mould for your products.


Click here to check more details


Other relation production:

1.Hydrualic hose

How to get quotation for the hydraulic hose:



If you interested in our hydraulic hose,please kindly tell me the information as below,we will send you the details.



Hose standard Size Layers of wire Quantity The hose used for
SAE/DIN or etc. Inner diameter 2SP/4SP or etc. meters/rolls hydraulic hose/water hose etc.

Packaging Details:

Regular package is 50 meters/roll.
By transparent plastic film, woven belt , wooden box fumigation or your request.

Delivery Time:

We are responsible for shipping goods to delivery port on time.
Click here to check more details


2. Fitting

We still product fitting and ferrule, If you need, you can contact with us. We will send the catalog of fitting and ferrule to you.



How to get quotation for the fitting and ferrule:



If you interested in our fitting and ferrule,please kindly tell me the information as below,we will send you the details.



Fitting standard Size Layers of wire Quantity Material
BSP/NPT or etc. Inner diameter of hose 2SP/4SP or etc. pieces Carbon steel/stainless steel



Click here to check more details









Q1: Delivery time?
A1:most of machines in stock, no need to wait.kk

Q2:you dont know if your stuff can be crimped or which machine to choose?
A2: The machine can crimp all fittings or joints, or click below customer serive avator to ask

Q3:what can be customized?
A3: voltage like 110V/240v  50hz/60hz or your need, color, logo, motor brand like Siemens,

Q4:Is there cheaper machine?
A4: yes, if you not often use this machine, you can send inquiry to ask cheaper one

Q5: what currency do you accept?
A5:USD,EUR,SGD,CNY, an you can pay by your person or your company

Q6:do you have manual portable machine?
A6: Yes, the smallest machine only 27kg, still has 12V 24V portable mobile mchine to take

Q7:Dont know how to use machine when receive?
A7:firstly manual instruction with machine, secondly offer video guide, finally guide by phone



Click here to check more details
