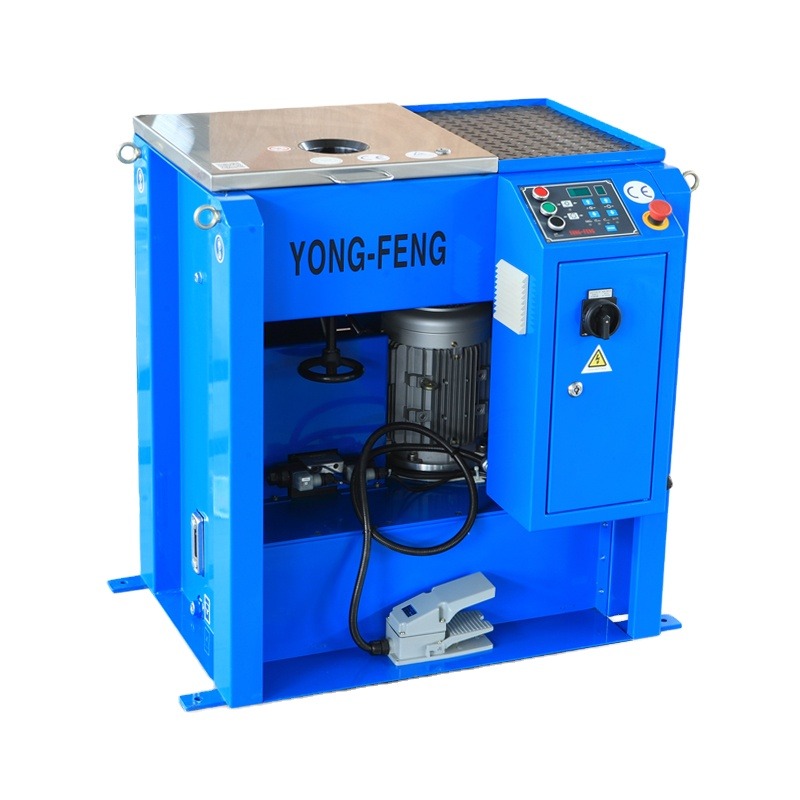

Factory YONG-FENG NC80 Nut Crimping Machine

1 Set
MOQ
$3,650.00(1 - 1 Sets) $3,550.00(2 - 2 Sets) $3,450.00(>=3 Sets)
Price
Factory YONG-FENG NC80 Nut Crimping Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 3 Years
Core Components: PLC, Nut Crimping Machine Parts
Machine Type: Hose Crimping Machine
Voltage: 110-480V
Dimension(L*W*H): 700*750*960mm
Weight: 252KG
Warranty: 3 Years
Power (kW): 4kw
Key Selling Points: Easy To Operate
Showroom Location: United Kingdom, Mexico, Russia, Thailand, Chile
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Nut Crimper
Crimper Model: YONG-FENG NC80
Operating Mode: CNC/Automatic
Crimper OEM: Yes
Crimper Range: 4-65mm
Crimper Dies: 10sets
Crimping Force: 500KN
System Pressure: 31.5Mpa
Protection Class: IP54
Crimper Color: Blue Or Custom Made
Power(W): 4kw
After-sales Service Provided: Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: United Kingdom, Saudi Arabia, India, Russia, Malaysia, Kenya, Argentina
Certification: ISO9001 CE
Basic Infomation
Certification: ISO9001 CE
Model Number: YONG-FENG NC80
Payment & Shipping Terms
Packaging Details: Standard export package, custom suffocating free. Inner PVC bags and outer wooden case.
Supply Ability: 500 Set/Sets per Month Nut Crimping Machine
Product Description
Product Description

Main Features

1) Using forge steel machine head, more durabler than general steel.

2) CNC operation panel, simple controls and operation.

3) CNC system, high crimp accuracy which is within 0.01mm.

4) Equipped with a foot pedal, very convenient for free hand operate.

5) Magnetic dies (Patented), very convenient to remove and install dies.

Product Parameter





Main Performance Parameters
Model
YONG-FENG NC80 Nut Crimper
Crimping Range
4-65mm
Hose Size
ID 2 inch
Crimping Force
500KN
Max Opening
+20mm
System Pressure
31.5Mpa
Operation Mode
CNC/Automatic
Power Voltage
110-480v, 50/60hz
Matching Power
3kw/4kw


Machine
Specifications
Machine Head
Forge Steel
Dimension (L*W*H)
700×750×960mm
Net Weight
252kg
Die Sets
10sets
Length of Dies
35-65mm

Product Application

YONG-FENG NC80 nut crimper has equipped with computer numerical control system, fast crimp and good quality. This machine features high crimp accuracy, big force, low noise and easy to operate. YONG-FENG NC80 nut crimper is mainly used for crimping processing for hydraulic nut assembly in the mechanical engineering. It can also be used for crimping hydraulic hose, steel pipes, especially large pipes and irregular shape pipes.

Detailed Images

Machine Head

Attribute: Forge Steel

Original: Germany Technology

Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.

Dies & Mold Base

Attribute: Strong Magnetic Connection

Original: YONG-FENG(Patented)
Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000. Dies and die base is connected by cutting-the-edge technology of strong magnetic connection, for which our company holds the patent.

Electromagnetic Valve

Attribute: 39.852N Pushing Force
Original: Germany SED
It is used to adjust the hydraulic oil flow direction, quantity, speed etc. With high precision and good flexibility. The reversing valve spool is original Germany SED. Working with stability, no shaking, no blocking.

Control Panel

Attribute: CNC Operation Panel

Original: China(Mainland)
YONG-FENG NC80 nut crimping machine has equipped with computer numerical control operation panel which is more humanized than the ordinary ones. Computer numerical control operation system makes crimping more accurate, faster and simpler.

Certifications
Company Strength

Yongfeng Crimpers, the professional manufacturer of hydraulic hose crimpers, cutter, skiving machine, test bench, hoses & fittings assembly and accessories for over 20 years. Yongfeng Crimpers supply the Portable, On-site mobile, Workshop and Industrial hose crimpers, which have widely used in industries of hydraulic repair service of construction machinery, agricultural machinery, vehicle repair, production of industrial hoses, hydraulic equipments, On-site service, oil fields, mining hydraulic prop, greenhouse, galvanized steel pipes etc.

YONGFENG Crimpers have covered more than 20 domestic provinces and cities in China's markets and exported to more than 100 countries as follows: European market, such as Poland, Bulgaria, Germany, Italy, Denmark, Russia, Malta; American market, such as Uruguay, Mexico, Bolivia, Columbia, Canada; Oceania market, such as Vanuatu, New Zealand, Australia; Asia market, such as Sri Lanka, India, Pakistan, Philippines; Middle East market, such as Kuwait, UAE; African market, such as Algeria, South Africa, and so on.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory & Office.

After-Sales Service

* Warranty for 3 years.

* Training how to instal and use the machine.

* Provide free quick-wear part.

Payment Term

Trade Assurance

* PAY to our company's CITIBANK account designated by Alibaba.com with credit card or bank transfer.
* 100% product quality protection; 100% on-time shipment protection; 100% payment protection.

T/T

* 100% T/T in advance(normal models in stock).
* 50% T/T in advance, balance paid before delivery(for the customized models).

Packing & Delivery
Packing
Size
750(L) * 800 (W) * 1000 (H)
Weight
262kg



Packaging Details

The normal package for our crimping machine is Wooden Plywood Crate. The outside package is standard export wooden case, and the inner package is stretch film or packaged according to customers special request.

Delivery

* The normal models of crimping machines are in stock, they can be delivered once the payment is finished. As for the customized ones, we promise that they can be deliverd within a week after we received the payment.

* Transportation, the first choice is shipping, air or land is also avaliable if customers have special request.

FAQ

1.Q: What's the difference of your machine with others?

A: FORGE Steel machine head, 3 times stronger than general machine.

CNC operation system, high crimp accuracy which is within 0.01mm.

2.Q: Are you the manufacturer or trading company?

A: We are the manufacturer for crimping machine over 20 years, since 1992.

3.Q: What about the price?

A: Competitive price, the advanced technology and high quality you ever have.

4.Q: Why we choose YONG-FENG?

A: CE & ISO certifications, Alibaba Assessed Supplier and every machine warranted for 3 years.

5.Q: What is the MOQ?

A: We would like to provide 1 set for you test.

6.Q: If I can not find the machine which I need,what should I do?

A: Pls contact me on line or inquiry, write down your request and email, I will reply you as soon as possible.


For more questions, please contact Wendy Wang via phone +86 13793601600.
