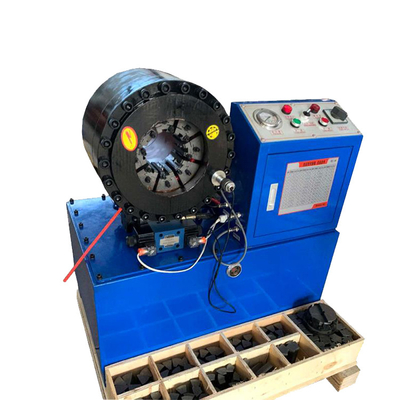

Hotels 1/4" up to 4" hot sale hydraulic hose crimping machine/rubber hose making machine

1 piece
MOQ
Hotels 1/4" up to 4" hot sale hydraulic hose crimping machine/rubber hose making machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 3 Years
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Machine Type: Hose Crimping Machine
Voltage: 220v/380v
Dimension(L*W*H): 670*490*780mm
Weight: 260kgs , 350kgs
Warranty: 3 Years
Power (kW): 3KW/4KW
Key Selling Points: Patented Product
Showroom Location: None
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Crimping Range: 6-51mm(1/4"-2")
Crimping Force: 600T
Rated Pressure:: 31.5
Scale Accuracy:: 0.01mm
Dies Size: 13.15,19,23,26,31,36,41,47,55,61
Votage: 220v/380v
Model Quatity: 11 Sets
Power: 3/4 Kw
Control System: Automatic Hands Or Button
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: CE ISO9001
Basic Infomation
Certification: CE ISO9001
Model Number: 11 sets
Payment & Shipping Terms
Supply Ability: 100000 Pallet/Pallets per Month
Product Description
Hose Crimping Machine 4-51mm Hydraulic Hose Crimping Pressing Machine For 4Sh
Specification
Crimping range
1/8 to 2inch or 4-51mm
Motor power
3.7KW/380V 3 phases, 3KW/220V phase or customize
Voltage
220V/380V/230V/415V or customize
Crimping force
600T
Dies
usually with 11 sets free dies, according customer request to make
Oil pump out-let quality
4ml,5ml,10ml/rad
Max opening
130mm
Scale accuracy
0.01mm
Dies number
Ф13 Ф15 Ф19 Ф22 Ф26（length 60mm）
Ф30 Ф34 Ф39(length 70mm)
Ф45 Ф51 Ф57 Ф63 Ф69(length 80mm)
Operate method
Button,foot pedal or add automatic
Quick change
Yes,if you need quick tool machine, please let me know,thanks
Dies rack
Yes,could install dies table regarding your requirement
Different machine the specification different, the data in the list only for your reference , the detailed machine data will mark on the contract, thanks.
Product Description
Main Feature 1) Using forge steel machine head, this kind of steel is more durabler than general steel. 2) Digital peration panel, high crimp accuracy. 3) Humanized design, simple controls and operation. 4) Equipped with a foot pedal, very convenient for free hand operate. 5) Magnetic dies (Patented), very convenient to remove and install dies We provide OEM for customers. If you need customized services, please contact us.
Hydraulic hose crimping machine has the characteristic such as, better connecting quality, more quick swagging speed, higher efficiency, easier to manipulate, more enduring, more convenient to maintain and etc.
Technical team: 16 years experienced workers, 16 years experienced engineers. Facilities: Save your money and time. show you golden quality and best services. Thanks for your support!! Quality control: 100% inspection before shipment
Hydraulic hose crimping machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hose crimping machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.
Packing & Delivery
Port: Ningbo/Shanghai/Tianjin, or according customers request. Delivery time: When I got your payment, the packing need 2 working days. Then send out soon. Thanks.
We accept all kinds of payment terms. T/T, L/C, D/P, D/A etc.
Company Profile
Jiaruisi hydraulic technology Co., Ltd. is covering an area of 6000 square meters. Our company is mainly engaged in the design, development, production and sales of hydraulic coupling,hydraulic hose,hose crimping machine，tubular coupling and other quick couplings. The company focuses on the development of international market and China market. The company mainly provides hydraulic and pneumatic products for oil, engineering, metallurgy, machine tools, military equipment and machinery manufacturing industries, adheres to the principle of "quality first, user first, reputation first, service first", meets the needs of customers.
Our products meet the national standard and passed the ISO9000,SGS,CE and the rest.
Recommend Products
FAQ
Q: What is your MOQ?
A: According customers request to packing and make it

Q: Could we pay a visit to your factory ?
A: Yes, welcome to visit our factory.

Q: Can you send us a sample to test quality before ordering ?
A: Yes, the sample is free. About the freight fee need to discuss with customers.

Q: Can you help us do the custom clearance ?
A: Yes, we can. We can help you find a professional custom clearance company to do it.

Q: Can we get the goods without your company name to export ?
A: Yes, we can. We are allowed to use your designated agent's name if you have one.

Q: Can you produce goods with special specification ?
A: Yes. try my best to meet customers request and according customers drawing to product it. Thanks.
