Home /Products/Rubber Hose Crimping Machine/Crimp Hose Cheap Price 3inch Hydraulic Hose Crimping Machine Hose Crimping Hose Pressing

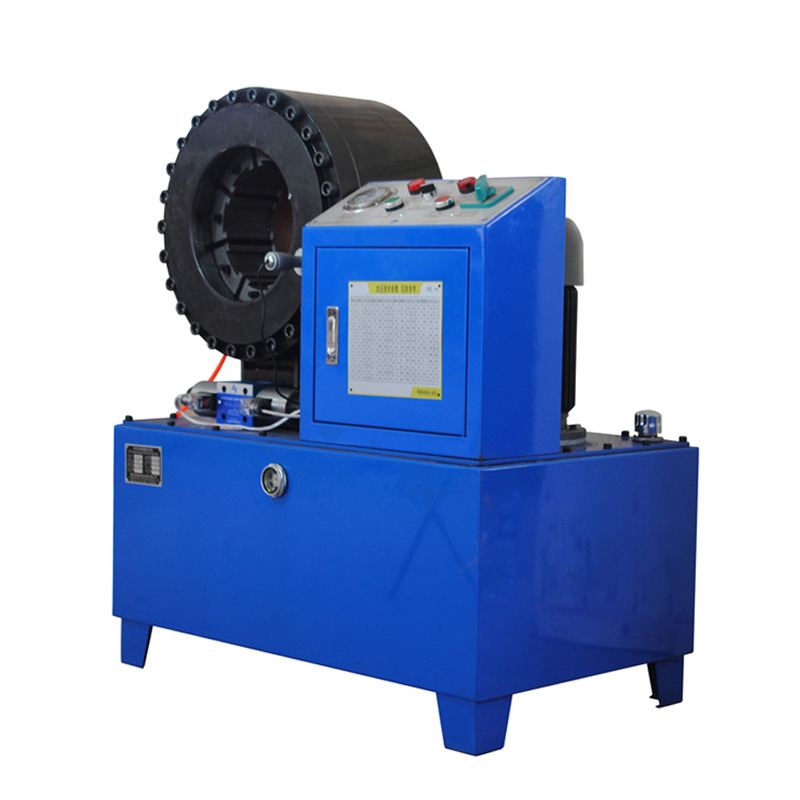

Crimp Hose Cheap Price 3inch Hydraulic Hose Crimping Machine Hose Crimping Hose Pressing

1 Set
MOQ
$3,100.00(1 - 4 Sets) $2,900.00(>=5 Sets)
Price
Crimp Hose Cheap Price 3inch Hydraulic Hose Crimping Machine Hose Crimping Hose Pressing
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor
Machine Type: Hose Crimping Machine
Voltage: 240v/380v/415v(Optional)
Dimension(L*W*H): 850*530*940mm
Weight: 420
Warranty: 1 Year
Key Selling Points: Competitive Price
Showroom Location: None
Applicable Industries: Building Material Shops, Machinery Repair Shops, Retail, Construction Works , Energy & Mining
Crimping Range: 6mm To 76mm
Application: Crimp Hose
Product Name: Cheap Price 3inch Hydraulic Hose Crimping Machine Pipe Pressing
Buckling Force: 800T
Model: CYT-76
Dies: 13 Sets
Max Opening: 135mm
System Pressure: 31.5 Mpa
Accuracy: 0.01mm
Power: 4kw
Basic Infomation
Model Number: CYT-76
Payment & Shipping Terms
Packaging Details: Firstly, use plastic film. Secondly , we will pack Cheap price 3inch hydraulic hose crimping machine pipe pressing by wooden case . In addition, we can pack the machine as per customers' requirements.
Supply Ability: 10 Set/Sets per Week Cheap price 3inch hydraulic hose crimping machine pipe pressing
Product Description
Product Description

Cheap price 3inch hydraulic hose crimping machine pipe pressing

Product Application of Cheap price 3inch hydraulic hose crimping machine pipe pressing

Hose crimping machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hose crimping machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.

SPECIFICATIONS of Cheap price 3inch hydraulic hose crimping machine pipe pressing
Crimping Range
Φ6~Φ76
Quantity of dies
 13 Sets

Item No. of dies
15.19.23.26.31.36.41.47.55.60
Excessive mold 75.85.105.
Accuracy
0.01mm
Volume of oil tank
10L
System Pressure
31.5Mpa
Motor Power
4KW
Voltage
110v/220v/240v/380v/415v(Optional
Buckling Pressure
800T
Effciency
200pcs/h
Max Open Diameter
135mm
The max open tolerance
±30mm
Machine Dimension
850*530*940mm
Package Dimension
910*590*1210mm
Net Weight
400kg
Gross Weight
420kg

Application of Cheap price 3inch hydraulic hose crimping machine pipe pressing

The machine is widely used in : engineering machinery ,oil fields, steel mills ,ship manufacturing, agricultural machinery ,coal and other industries.

Detailed Images

Machine Parts

Name: Operating panel

Low noise, easy operation and good maintenance


Machine Parts

Name: Sensor Limit

Machine Parts

Name: Dies


Our Service

1. Pre-Sales Service

 * Inquiry and consulting support.
 * View our Factory.

2.After-Sales Service
* Training how to instal the mould , training how to use the machine.
* When the machine went wrong , our engieer will provide our customer technial support and solutions.
Our Company

Henan Chengyitong Machinery Equipement Co., Ltd specializes in Cheap price 3inch hydraulic hose crimping machine pipe pressing, hose cutting machine , hose skiving machine and other equipment. We insist Quality Create Value and will provide one-stop service for our customers.

Packing & Delivery
Packaging
Size
910(L) * 590(W) * 1210(H) mm
Weight
520kg



Packaging Details
The normal package of Cheap price 3inch hydraulic hose crimping machine pipe pressing is pe film firstly and then pack goods by fumigated wooden box or pack it according to customers' special request.
FAQ

1.Do you have CE certificate?


Yes,the following is our CE certificate.


2. Do you offer other products?

Yes,we have rubber hose ,PVC hose , hose fittings and so on.

3. Do you have operation brochure and whether we can print our own logo on the machine?

Yes , we have and when we sent ce iso classcial large diameter hydraulic hose crimping machine and I will send it to your mail box. In addition, you can print your own company logo.
