Home /Products/Hyd Hose Crimper/Factory Touch Screen High Pressure Hydraulic Hose Machine Hose Crimping Crimper

Factory Touch Screen High Pressure Hydraulic Hose Machine Hose Crimping Crimper

1 Set
MOQ
$4,700.00(1 - 1 Sets) $4,500.00(>=2 Sets)
Price
Factory Touch Screen High Pressure Hydraulic Hose Machine Hose Crimping Crimper
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty Of Core Components: 3 Years
Core Components: Machine Head
Machine Type: Hose Crimping Machine
Voltage: 110V-480V
Dimension(L*W*H): 650*500*730mm
Weight: 260
Warranty: 3 Years
Key Selling Points: High-accuracy
Showroom Location: None
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining
Crimping Range: 3mm To 80mm
Drive: 4kw
Product Name: High Pressure Hydraulic Hose Crimping Machine Hose Crimper
Hose Size: 2" 4SP
Opening Without Dies: 118mm
Standar Dies: 14 Sets
Max Opening: +25mm
Control: Digital
Max. Crimping Force: 2000kN
Power(W): 4KW
Basic Infomation
Payment & Shipping Terms
Packaging Details: Firstly, use plastic film. Secondly , we will pack Touch screen high pressure hydraulic hose crimping machine hose crimper by wooden case . In addition, we can pack the machine as per customers' requirements.
Supply Ability: 300 Set/Sets per Month Touch screen high pressure hydraulic hose crimping machine hose
Product Description

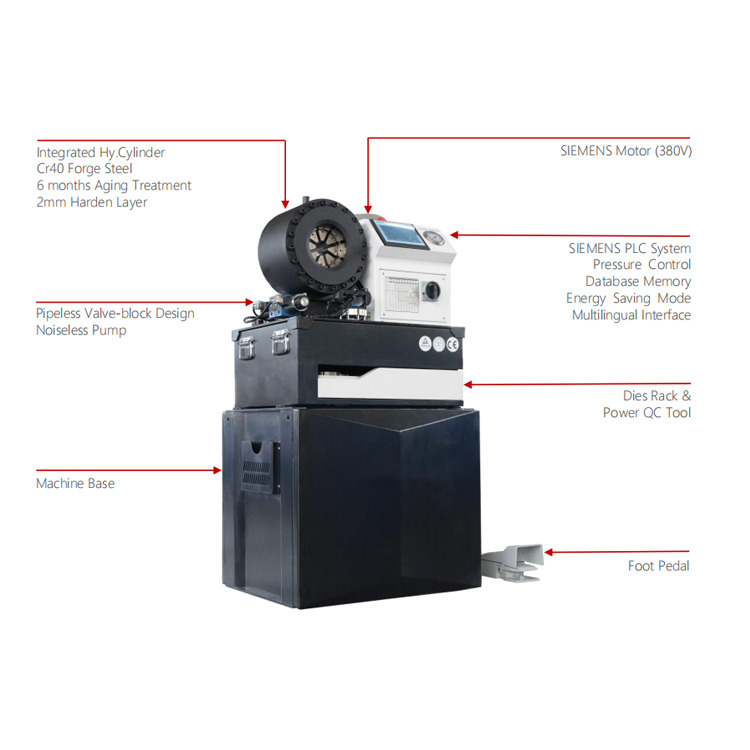

Touch screen high pressure hydraulic hose crimping machine hose crimper



Product Description



Touch screen high pressure hydraulic hose crimping machine hose crimper is perfect for production crimping in the hardest environment all around the world. The traditional strong design is ideal for extreme working conditions such as in mines or tropical sites.



Custom crimping device hydraulic hose crimpers is very easy to operate and offer affordable crimping in service operations. The compact design of F3 means it is easily movable to anywhere.

 Specification of Touch screen high pressure hydraulic hose crimping machine hose crimper



H.C. material Forge Steel
Crimping range 3-80mm(1/8"-3 1/16")

Max. Hydraulic hose

 2",4SP(ID51mm)
Max. Opening +25mm(1")
Opening without dies 118mm( 4 5/8")
Accessible Diameter 118mm( 4 5/8")
Master Die Length 80mm(3 1/16")
System Pressure 31.5Mpa
Max. Crimping Force 2000KN(200T)
Motor Power 4kw
Standard Voltage 110V-480V
Control Digital
Noise Level 60dBA
Weight 260KG
LxWXH 650*500*730mm



Specification of dies

Dies No. Range D L
F32/03 3.0-5.0 3 35
F32/06 6.0-7.0 6 35
F32/08 8.0-9.0 8 35
F32/10 10.0-11.0 10 35
F32/12 12.0-14.0 12 35
F32/15 15.0-17.0 15 45
F32/18 18.0-20.0 18 45
F32/20 20.0-22.0 20 45
F32/23 23.0-25.0 23 50
F32/26 26.0-28.0 26 65
F32/29 29.0-35.0 29 65
F32/36 36.0-45.0 36 80
F32/46 46.0-55.0 46 80
F32/51 51.0-61.0 51 80
F32/63 63.0-70.0 63 80
F32/70 70.0-80.0 70 80

Note: 1.Special dies requirements can be available.

2.Standard Dies are 10sets. If more than 10sets, price will be increased.





FAQ

 1. Do you have one machine which crimp 2inch, 6 wire hose?

Yes, we have. Please send inquiry to us and I will send you details. You can also check CYT-F51X and it can crimp 2" 6SP hose.



2.How do I make payment to your company ?

Firstly, after everything is ok and I will send you PI for your confirmation. Then I will draw Alibaba Trade Assurance Order to you.

Secondly, you can make payment to our company account directly.



3. What will be included in the box ?

Standard Accessories:

One machine

14sets of standard dies

Dies drawer

Spare parts packet

Optional Accessories :

Dies base and power QC control

Customized dies

Manual QC tool
