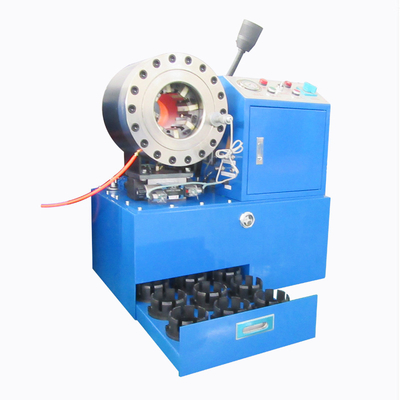

Crimping Hose Fittings With Quick Change Tools Machines Flexible Hydraulic Rubber Hose Making Crimping Machine

1 Set
MOQ
$2,000.00(1 - 9 Sets) $1,800.00(10 - 19 Sets) $1,600.00(20 - 39 Sets) $1,400.00(>=40 Sets)
Price
Crimping Hose Fittings With Quick Change Tools Machines Flexible Hydraulic Rubber Hose Making Crimping Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump
Machine Type: Hose Crimping Machine
Voltage: 220V/380V
Dimension(L*W*H): 670(L)*490(W)*780(H)mm
Weight: 260KG
Warranty: 3 Years
Key Selling Points: Easy To Operate
Showroom Location: None
Applicable Industries: Crimping Hose
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support
Name: Hose Crimping Machine
Product Name: High Pressure Hydraulic Hose Crimping Machine
Application: Crimping Hose Fittings
Color: Blue
Crimping Range: 6-51mm
Crimping Force: 500T
Product Type: HR-68
Power: 3KW/4KW
After Warranty Service: Online Support
Local Service Location: None
Certification: ISO9001
Basic Infomation
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: new strong wooden case.3 ways packing for protecting machine well in delivery.
Supply Ability: 500 Set/Sets per Month
Product Description
Product Description

Product Application

Professional automatic big opening size hose ferrule crimping machine

Hose crimping machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hose crimping machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.

SPECIFICATIONS FOR HR68 HOSE CRIMPING MACHINE

Power system
Rotating speed
rpm/min
1440
power
Kw
3/4
Voltage
V
220/380





Crimping system
Lock(inner) range
mm
6-51
Amount of dies
sets
10
Mould No
15,19,23,26,31,36,41,47,55,60
Withhold accuracy
mm
0.01
Maximum opening
mm
114
Opening extension
mm
±30
Buckling pressure
T
500
Effcency
pieces/hour
200

Hydraulic system
Systerm pressure
KPa
31.5
Swept volume
L
2.5/5/10
Tank Volume
L
70
SIZE
Dimensions of product
mm
730*480*740
Dimensions of packaging
mm
800*530*870

Weight
Net weight
KG
245
Gross weight
KG
260

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications
Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Product
Size
730(L) * 480 (W) *740(D)
Weight
245KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
800(L) * 530 (W) * 870 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

working room
