Name: Factory YONG-FENG YJK-16 manual pipe crimping machines
Brand: Factory YONG-FENG YJK-16 manual pipe crimping machines
SKU: YONG-FENG F16HP
Rating: 4.6 (129 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Condition: New

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty Of Core Components: 3 Years

Core Components: Pump

Machine Type: Hose Crimping Machine

Voltage: None

Dimension(L*W*H): 320*350*290 Mm

Weight: 25KG

Warranty: 3 Years

Power (kW): 0

Key Selling Points: Easy To Operate

Showroom Location: India, Mexico, Russia, Thailand

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction WorksÂ , Energy & Mining

After-sales Service Provided: Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support, Video Technical Support

Crimper Model: YONG-FENG F16HP

Crimper OEM: Yes

Crimper Range: 10-43mm

Max Opening: +20mm

Crimper Dies: 6 Sets

Operating Mode: Manual

Crimping Force: 95.5T

Crimper Color: Blue Or Customized

MOQ: 1 Set

After Warranty Service: Video Technical Support, Spare Parts

Local ServiceÂ Location: India, Mexico, Russia, Thailand

Certification: ISO9001 CE

Basic Infomation

Certification: ISO9001 CE

Model Number: YONG-FENG F16HP

Payment & Shipping Terms

Packaging Details: Standard export package, custom suffocating free. Inner PVC bags and outer wooden case.

Supply Ability: 500 Set/Sets per Month Hydraulic Hose Crimping Machine

Product Description

Main Features

1) Using forge steel machine head, this kind of steel is more durabler than general steel.
2) Simple controls and operation.
3) Small body, simply designed, convenient for operating and carrying.
4) Suitable for outdoor work without electric power.
5) Magnetic dies (Patented), very convenient to remove and install dies.

Product Parameter
Main Performance Parameters	Model	F16HP Crimping Machine
		Hose size	up to 1"
		Crimping range	0.39"– 1.77" / 10mm-45mm
		Max Opening	+20mm
		Crimping Force	955KN
		Certificition	CE ISD9001:2015
		Operation Mode	Manual
		Power	Hand pump
		Precision	0.1mm
Machine Specifications	Machine Head	Forge Steel
		Dimension (LWH)	320mm350mm290mm
		Net Weight	25kg
		Die Sets	6sets
		Length of Dies	39/64mm

Product Application

Model F16HP manual hose crimping machine is a portable type of machine which is simply designed and convenient for operating and carrying. It takes manual pump of extra high pressure as power source. So it's suitable for the outdoor work and production without electric power. F16HP manual crimping machine is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering. It can also be used for crimping steel pipes, irregular shape pipes and so on.

Detailed Images

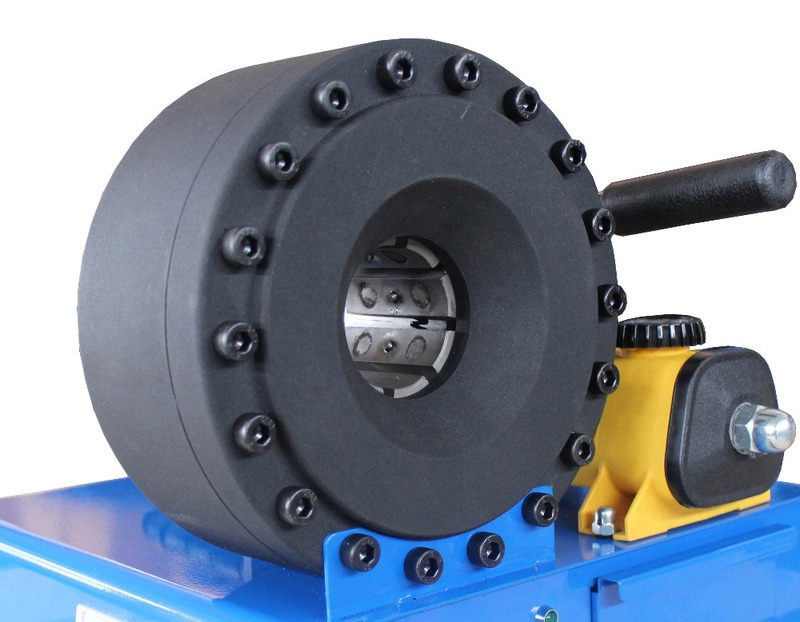

Machine Head

Attribute: Forge Steel

Original: Germany Technology

Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.

Dies & Mold Base

Attribute: Strong Magnetic Connection

Original: YONG-FENG(Patented)
Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000. Dies and die base is connected by cutting-the-edge technology of strong magnetic connection, for which our company holds the patent.

Machine Body

Attribute: Anti-Rust Spray
Original: American Material
Machine surface is processed by Anti-Rust Spray, compared with traditional painting, it is more environmental friendly, good appearance, strong adhesion, mechanical strength, high capability of anti-wear and anti-rust.

Certifications

Company Strength

Yongfeng Crimpers, the professional manufacturer of hydraulic hose crimpers, cutter, skiving machine, test bench, hoses & fittings assembly and accessories for over 20 years. Yongfeng Crimpers supply the Portable, On-site mobile, Workshop and Industrial hose crimpers, which have widely used in industries of hydraulic repair service of construction machinery, agricultural machinery, vehicle repair, production of industrial hoses, hydraulic equipments, On-site service, oil fields, mining hydraulic prop, greenhouse, galvanized steel pipes etc.

Yongfeng Crimpers have covered more than 20 domestic provinces and cities in China's markets and exported to more than 80 countries as follows: European market, such as Poland, Bulgaria, Germany, Italy, Denmark, Russia, Malta; American market, such as Uruguay, Mexico, Bolivia, Columbia, Canada; Oceania market, such as Vanuatu, New Zealand, Australia; Asia market, such as Sri Lanka, India, Pakistan, Philippines; Middle East market, such as Kuwait, UAE; African market, such as Algeria, South Africa, and so on.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory & Office.

After-Sales Service

* Warranty for 3 years.

* Training how to instal and use the machine.

* Provide free quick-wear part.

Payment Term

Trade Assurance

* PAY to our company's CITIBANK account designated by Alibaba.com with credit card or bank transfer.
* 100% product quality protection; 100% on-time shipment protection; 100% payment protection.

T/T

* 100% T/T in advance(normal models in stock).
* 50% T/T in advance, balance paid before delivery(for the customized models).

Packing & Delivery

Packing
Size	420(L) * 420 (W) * 390 (H)
Weight	240kg
Packaging Details	The normal package for our crimping machine is Wooden Plywood Crate. The outside package is standard export wooden case, and the inner package is stretch film or packaged according to customers special request.

Delivery

* The normal models of crimping machines are in stock, they can be delivered once the payment is finished. As for the customized ones, we promise that they can be deliverd within a week after we received the payment.

* Transportation, the first choice is shipping, air or land is also avaliable if customers have special request.
