Home /Products/Hose Skiving Machine/Dustless Pipe Cutting Machine China Factory Easy And Safe To Use Hydraulic Pipe Skiving Machine AC380V Single Phase Three Phase AC220V With Safety Cover

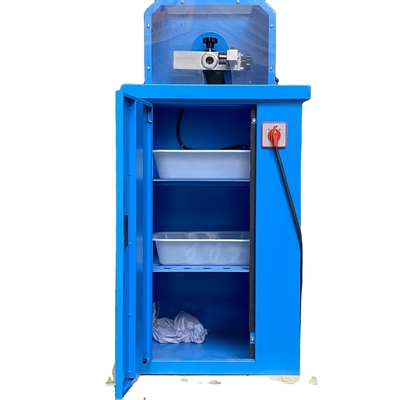

Dustless Pipe Cutting Machine China Factory Easy And Safe To Use Hydraulic Pipe Skiving Machine AC380V Single Phase Three Phase AC220V With Safety Cover

1 Piece
MOQ
$459.00(1 - 4 Pieces) $439.00(5 - 9 Pieces) $419.00(10 - 69 Pieces) $379.00(>=70 Pieces)
Price
Dustless Pipe Cutting Machine China Factory Easy And Safe To Use Hydraulic Pipe Skiving Machine AC380V Single Phase Three Phase AC220V With Safety Cover
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel
Machine Type: Hose Crimping Machine, CM-20
Weight: 120
Warranty: 1 Year
Key Selling Points: Competitive Price
Showroom Location: None
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Application: Dustless Hose Cutting Machine
Product Name: Skiving Machine
Color: Blue
MOQ: 1 Unit
Power: 3 Kw
Max Opening: 136 MM
Payment: T/T, Western Union, Credit Card
Brand: CM (China)
Certification: ISO9001
Basic Infomation
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Carton
Product Description
Product Description
SPECIFICATIONS:

Big force,low noise and easy to operate
Nice look,performance,price
ISO certificate
MODEL
CM-10
Max hose ID
φ 6~ 51mm (maximum 2 inch, min 2 min)
Rated voltage
Three-phase AC380V or single-phase AC220V
Random supporting mold
10 set (15, 19, 23, 27, 31, 36, 41, 47, 53, 58) STD
Weight
120 Kg
Dimensions
630(L)x750(W)x800 (H)mm
Instructions for use
Before turning on the machine, please install the corresponding peeling mandrel into the bushing, and tighten the top wire, then install the turning tool on the peeling tool bar, and adjust the length of the turning tool handle until the adjustment can be completed. Then tighten the top wire of the fixed cutter bar, and then check whether the fasteners are fastened again. After confirming, you can turn on the machine, and then you can try to cut the hose. If the peeling is not clean, you can continue Adjust the handle of the turning tool to the center so that it can be turned to a greater depth. If the hose is wound with steel wire, turn on the switch depending on the winding direction, and the turning direction of the turning tool is determined by the reverse switch.

  • Instructions for use and precautions


1. Turn on the power, start the machine, and check the blade.
2. It is forbidden to put it on the pipe cutting machine to prevent
vibration, equipment and personal accidents.
3. The distance of the blades should be adjusted according to different tube diameters, and the electrical buttons must be
accurate.
4. To replace the blade and adjust, the power must be cut off.
5. If abnormal sound is found, stop the machine immediately, cut off the power supply, and repair it.
6. When the pipe cutting machine is working, it is not allowed to carry out repairs, oiling, cleaning, etc. to avoid
strangulation.
7. The pipe cutting machine must be personally responsible, and others are not allowed to use it at will.

Packing&Shipping
Packing Details :
Plastic cover with wooden case
Delivery Details :
1-10 set will be finished within 7 days.
Size Information


Related Products
After Sales Service
Quality Asurance
The company promises that all machines sold by the company can enjoy a quality guarantee period of 12-24 months from the day of sale. If any quality problem (not caused by human factors) occurs during the quality guarantee period, the company will send it free of charge Parts for repair.
Company Introduction
SOMPO Machinery Equipment Co., Ltd. was established in early 2010. Our company is located in the beautiful Tianhe District, Guangzhou City. We have 10 years of professional experience in producing and selling excavator seal kits and crimping machine, and we are the agent of SKF brand seals. We have won the trust of many customers with excellent product quality and service. Welcome new and old customers to guide.

Our Services & Strength

Factory direct sales crimping machine, high quality and low price, stable performance, and good after-sales service system
FAQ

Welcome to contact us to know more !
