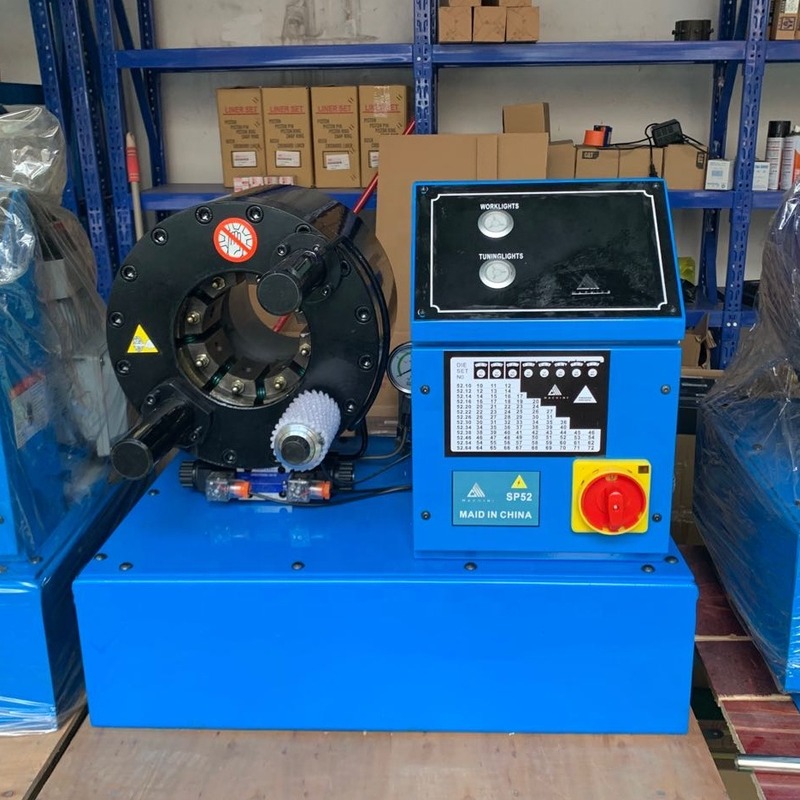

Factory Outlet SP52 Hydraulic Rubber Hydraulic Hose Hose Crimping Machine

1.0 Pieces
MOQ
Factory Outlet SP52 Hydraulic Rubber Hydraulic Hose Hose Crimping Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump
Machine Type: Hose Crimping Machine
Voltage: 220V
Dimension(L*W*H): 700(L)x630(W)x770 (H)mm
Weight: 200 Kg, 200 Kg
Warranty: 1 Year
Power (kW): 3
Key Selling Points: Easy To Operate
Showroom Location: United States
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Hydraulic Hose
Application: Hydraulic Rubber Hose
Dies: 10 Set (Standard)
Color: Blue
MOQ: 1 Unit
Crimper Model: SP52
Power: 3 Kw
Max Opening: 136 MM
Payment: T/T, Western Union, Credit Card
Brand: CM (China)
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Online Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: United States
Certification: ISO9001
Basic Infomation
Certification: ISO9001
Model Number: SP52
Payment & Shipping Terms
Packaging Details: Wooden Case
Supply Ability: 1000 Piece/Pieces per Week Crimping Machine
Product Description
Product Description
SPECIFICATIONS:

Big force,low noise and easy to operate
Nice look,performance,price
ISO certificate
MODEL
SP52
Max hose ID
φ 6~ 51mm (maximum 2 inch, min 2 min)
Rated voltage
Three-phase AC380V or single-phase AC220V
Random supporting mold
10 set (15, 19, 23, 27, 31, 36, 41, 47, 53, 58) STD
Weight
200 Kg
Dimensions
700(L)x630(W)x770 (H)mm
Direction for use
使用说明
1. When crimping, place the fitiing in the center of the mold as much as possible, and do not press on the hexagonal nut. 2. Prevent tools and other foreign objects from entering the press head. 3. Every time after the work is completed, the eight mold bases must be opened to the maximum extent, so that the spring can be in an open state and the spring can be maintained, and the oil cylinder is also in a pressure relief state to extend the life of the oil seal.

  • Description of application effect:


1. When using the tube press for the first time, it should be crimped 20-30 times without load, and it can be used after observing that all parts are normal.
2. When using the pipe press in winter, it should be withheld 20-30 times without load to increase the oil temperature.
3. Press the open button, after the mold base is opened, select the corresponding mold to install on the mold base according to the specifications of the hose to be crimped, and adjust the micrometer scale.
4. Place the hose with the joint in the proper position in the press head so that the entire length is crimped at one time.
5. Press the crimp button to execute the crimping operation until the crimping head stops crimping and automatically opens the mold.
6. Take out the crimped hose assembly, use a vernier caliper to check the outer diameter of the crimped joint jacket. If it does not match the parameter table, fine-tune the micrometer scale until the next hose crimp meets the requirements.
Packing&Shipping
Packing Details :
Plastic cover with wooden case
Delivery Details :
1-10 set will be finished within 7 days.
Size Information


Related Products
After Sales Service
Quality Asurance
The company promises that all machines sold by the company can enjoy a quality guarantee period of 12-24 months from the day of sale. If any quality problem (not caused by human factors) occurs during the quality guarantee period, the company will send it free of charge Parts for repair.
Company Introduction
SOMPO Machinery Equipment Co., Ltd. was established in early 2010. Our company is located in the beautiful Tianhe District, Guangzhou City. We have 10 years of professional experience in producing and selling excavator seal kits and crimping machine, and we are the agent of SKF brand seals. We have won the trust of many customers with excellent product quality and service. Welcome new and old customers to guide.

Our Services & Strength

Factory direct sales crimping machine, high quality and low price, stable performance, and good after-sales service system
