1/4" to 2" 4SP hose crimping machine rubber pipe making machine

Product Application of 1/4" to 2" 4SP hose crimping machine rubber pipe making machine
Crimping machine is a kind of hydraulic device which is used to withhold pipes and fittings. It could connect metal joints with the fitting hoses firmly such as high pressure oil hose , brake pipes on cars, motor oil hose, AC hose, dynamic hose. Crimping machine could be used in extensive field such as engineering machinery, vehicles, hydraulic machinery, welding and cutting equipment.

SPECIFICATIONS of 1/4" to 2" 4SP hose crimping machine rubber pipe making machine
Crimping Range	6mm to 51mm(1/4" to 2")
Quantity of dies	10 Sets
Item No. of dies	15.19.23.26 length 60mm
		31.36.41 length 70mm
		47.55.60 length 80mm
Accuracy	0.01mm
Volume of oil tank	5L
System Pressure	31.5Mpa
Motor Power	3KW
Voltage	220v/240v/380v/415v(Optional)
Buckling Pressure	500T
Effciency	200pcs/h
Max Open Diameter	114mm
The max open tolerance	±30mm
Machine Dimension	8606401300mm
Package Dimension	9006801450mm
Net Weight	310kg
Gross Weight	326kg

Main Features of 1/4" to 2" 4SP hose crimping machine rubber pipe making machine

1)Hydraulic cylinder and piston are all made of integrative precise steel casting. Comparing with welding technique, the hydro cylinder and piston will not transform when they are made. Pistons and moulds are driven to move by hydraulic power, so they have the advantage of stability and high speed, and avoid the mould locking phenomenon happens. The hydro cylinder locking systems is designed scientifically, so it is easy to withhold various anomalous connector bends.

2)Hydraulic system is made of electrical motor, oil pump, solenold valve, overflow valve and valve block which has double
hydraulic oil-channel. The double hydraulic oil-channel could make move forward and backward. In order to back the original position quickly, to adjust the speed and to reduce noise and system pressure. Hydraulic-controled cone-way valve is added to double hydraulic oil-channel.

3)Our crimping machine have two overflow valve. The high pressure overflow valve works when pipes are crimped. High pressure overflow valve could ensure the heavy pressure and high quality products, The low overflow valve works when molds are opened. Low pressure overflow valve could avoid oil seal bearing heavy pressure ,so as to increase its life period.

4)The base has two slope , to make sure that the pressure is homogeneous, the every part of the product has the same pressure, the lines of product have the equal gap, and there are no symmetry phenomenon,

5)Good quality alloy steel material and particular hear-treatment technique are used in order to ensure the permanent mechanical accuracy and life period of crimping machine. The life period of crimping machine has business with material, heat-treatment, mechanical processing, assembly and reasonable structure.

Oil pump is set and submerged into the oil tank, so it could reduce the noise and radiate the heat quickly. The oil pump which is driven by electrical motor drive the piston move by pumping the hydraulic oil out. When the mold base move forward, the mold could give pressure to hose joint. When the shrinkage reach to the pre-set number, the pressure stop and the solenold valve reverse.At this time, the piston move backward , the mold open and the work finish.

Packaging
Size	900(L) * 680(W) * 1450(H) mm
Weight	326kg
Packaging Details	The normal package of 1/4" to 2" 4SP hose crimping machine rubber pipe making machine is pe film firstly and then pack goods by fumigated wooden box or pack it according to customers' special request.

Building material stores YONG-FENG Y120 2" garden hose crimping machine/water hose crimping machine

Building Material Stores High Quality Portable High Precision Full Automatic Price Heavy Duty Hydraulic Pipe Crimping Machine Automatic

Locking Fittings Manual Hydraulic Hose Crimping Tool for Hose Tube and Hose with Competitive Price

Building material shops china 1 inch manual hydraulic pipe crimping machine pipe crimping machine

Building Material Shops Quick Change Tool Avabile Hydraulic Hose Crimping Machinery Parts Full Automatic Crimping Price

Hose fittings ferrul dx68 6-51mm hydraulic hose crimping ferrul dx68 6-51mm automatic portable high pressure rubber industrial used crimping machine

2022 Price, DSG51B Pipe Crimp Energy Supply New Product Pipe Press Machine Crimping Machinery (1/8"--2inch)

Multifunctional Hydraulic Hose Pressing Machine DSG51B Model Hydraulic Hose Crimp Power Supply High Speed Hose Crimping Machine

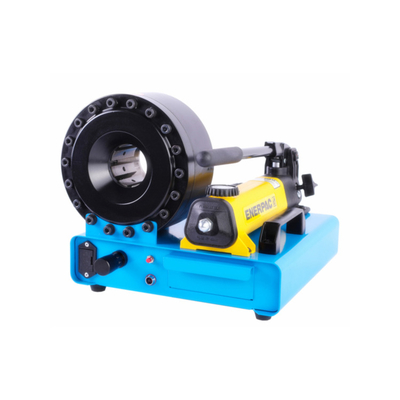

Crimp Hose P16 Most Popular Auto Products Hydraulic Rubber Hose Pressing Crimping Machine
