Building Material Shops 1 Year Warranty Pipe Machine Hydraulic Pipe Crimping Press Price

1 Set
MOQ
$4,000.00(1 - 1 Sets) $3,900.00(2 - 3 Sets) $3,800.00(>=4 Sets)
Price
Building Material Shops 1 Year Warranty Pipe Machine Hydraulic Pipe Crimping Press Price
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 3 Years
Core Components: PLC, Hydraulic System
Machine Type: Hose Crimping Machine
Voltage: 110-480V
Dimension(L*W*H): 650*500*700mm
Weight: 225kg, 225kg
Warranty: 3 Years, 3years
Power (kW): 4KW
Key Selling Points: Long Service Life
Showroom Location: United Kingdom, Peru, Mexico, Russia, Thailand, Chile, Australia
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Hose Crimping
Product Name: Hose Crimping Machine Hydraulic Hose Pressing Machine
H.C.Material: Forge Steel (Cr40)
Crimp Capacity: 1 1/4" 4sp
Master Die Length: 70mm
Motor Power: 4kw
Crimp Force: 175T
Control: Digital
Dimension: 650*500*700mm
After-sales Service Provided: Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: Italy, France, Peru, Mexico, Russia, Thailand, UAE, South Africa
Certification: ISO:9001 CE
Basic Infomation
Certification: ISO:9001 CE
Payment & Shipping Terms
Packaging Details: Standard export package, custom suffocating free. Inner PVC bags and outer wooden case.
Product Description
Product Description

Main Features

1) Using forge steel machine head, more durabler than general steel.

2) CNC operation panel, simple controls and operation.

3) CNC system, high crimp accuracy which is within 0.01mm.

4) Equipped with a foot pedal, very convenient for free hand operate.

5) Magnetic dies (Patented), very convenient to remove and install dies.

Product Parameter





Main Performance Parameters
Model
YONG-FENG Y80 Crimping Machine
Crimping Range
up to 1 1/4" 4sp
Opening Without Dies
96mm
Crimping Force
175T
Mold Opening Time
1.2s
System Pressure
31.5Mpa
Operation Mode
CNC/Automatic
Power Voltage
110-480v
Matching Power
4kw


Machine
Specifications
Machine Head
Forge Steel
Dimension (L*W*H)
650×500×700mm
Net Weight
225kg
Die Sets
12sets
Master Die Length
70mm

Product Application

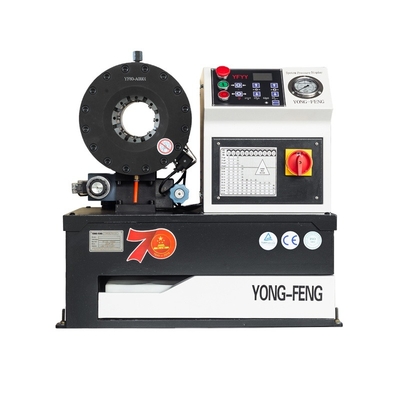

Model YONG-FENG Y80 CNC crimping machine has equipped with computer numerical control system, fast crimp and good quality. This machine features small and portable appearance, high crimp accuracy and easy to operate. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device. YONG-FENG Y80 crimper is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering. It can also be used for crimping steel pipes, especially large pipes and irregular shape pipes.

Detailed Images

Machine Head

Attribute: Forge Steel

Original: Germany Technology

Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.

Dies & Mold Base

Attribute: Strong Magnetic Connection

Original: YONG-FENG(Patented)
Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000. Dies and die base is connected by cutting-the-edge technology of strong magnetic connection, for which our company holds the patent.

Electromagnetic Valve

Attribute: 39.852N Pushing Force
Original: Germany SED
It is used to adjust the hydraulic oil flow direction, quantity, speed etc. With high precision and good flexibility. The reversing valve spool is original Germany SED. Working with stability, no shaking, no blocking.

Control Panel

Attribute: CNC Operation Panel

Original: China(Mainland)
YONG-FENG Y80 crimping machine has equipped with computer numerical control operation panel which is more humanized than the ordinary ones. Computer numerical control operation system makes crimping more accurate, faster and simpler.

Certifications
Company Strength

Yongfeng Crimpers, the professional manufacturer of hydraulic hose crimpers, cutter, skiving machine, test bench, hoses & fittings assembly and accessories for over 20 years. Yongfeng Crimpers supply the Portable, On-site mobile, Workshop and Industrial hose crimpers, which have widely used in industries of hydraulic repair service of construction machinery, agricultural machinery, vehicle repair, production of industrial hoses, hydraulic equipments, On-site service, oil fields, mining hydraulic prop, greenhouse, galvanized steel pipes etc.

Yongfeng Crimpers have covered more than 20 domestic provinces and cities in China's markets and exported to more than 100 countries as follows: European market, such as Poland, Bulgaria, Germany, Italy, Denmark, Russia, Malta; American market, such as Uruguay, Mexico, Bolivia, Columbia, Canada; Oceania market, such as Vanuatu, New Zealand, Australia; Asia market, such as Sri Lanka, India, Pakistan, Philippines; Middle East market, such as Kuwait, UAE; African market, such as Algeria, South Africa, and so on.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory & Office.

After-Sales Service

* Warranty for 3 years.

* Training how to instal and use the machine.

* Provide free quick-wear part.

Payment Term

Trade Assurance

* PAY to our company's CITIBANK account designated by Alibaba.com with credit card or bank transfer.
* 100% product quality protection; 100% on-time shipment protection; 100% payment protection.

T/T

* 100% T/T in advance(normal models in stock).
* 50% T/T in advance, balance paid before delivery(for the customized models).

Packing & Delivery
Packing
Size
750(L) * 600 (W) * 800 (H)
Weight
235kg



Packaging Details

The normal package for our crimping machine is Wooden Plywood Crate. The outside package is standard export wooden case, and the inner package is stretch film or packaged according to customers special request.

Delivery

* The normal models of crimping machines are in stock, they can be delivered once the payment is finished. As for the customized ones, we promise that they can be deliverd within a week after we received the payment.

* Transportation, the first choice is shipping, air or land is also avaliable if customers have special request.

FAQ

1.Q: What's the difference of your machine with others?

A: FORGE Steel machine head, 3 times stronger than general machine.

CNC operation system, high crimp accuracy which is within 0.01mm.

2.Q: Are you the manufacturer or trading company?

A: We are the manufacturer for crimping machine over 20 years, since 1992.

3.Q: What about the price?

A: Competitive price, the advanced technology and high quality you ever have.

4.Q: Why we choose YONG-FENG?

A: CE & ISO certifications, Alibaba Assessed Supplier and every machine warranted for 3 years.

5.Q: What is the MOQ?

A: We would like to provide 1 set for you test.

6.Q: If I can not find the machine which I need,what should I do?

A: Pls contact me on line or inquiry, write down your request and email, I will reply you as soon as possible.
